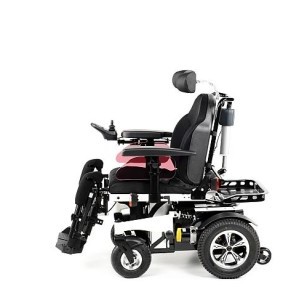

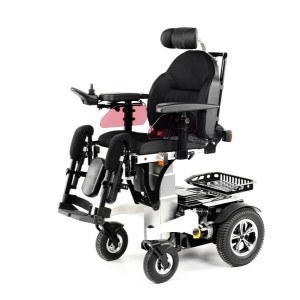

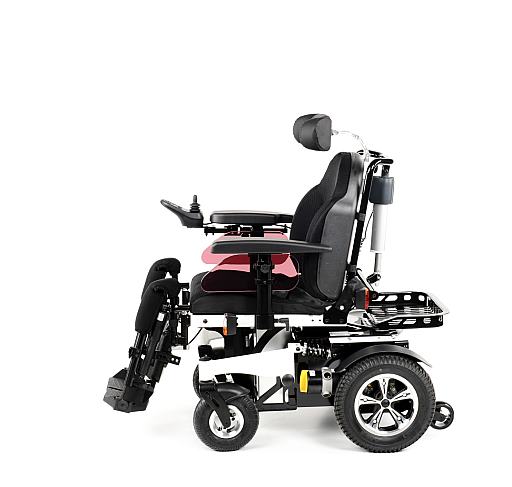

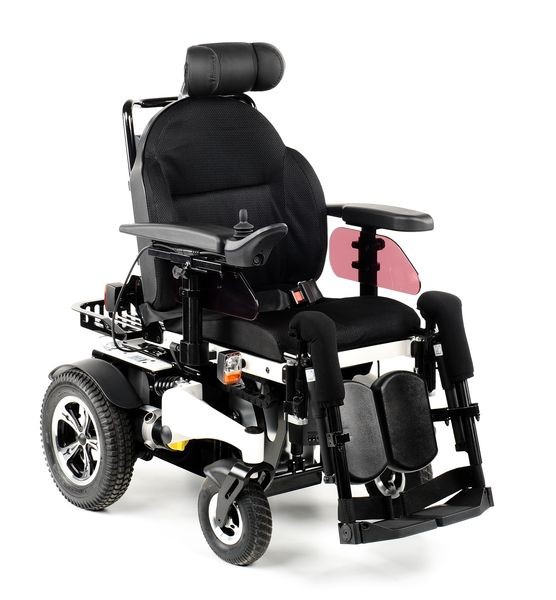

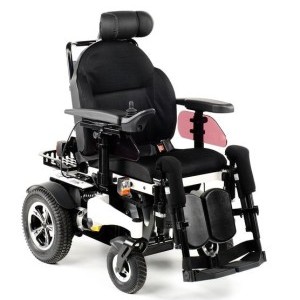

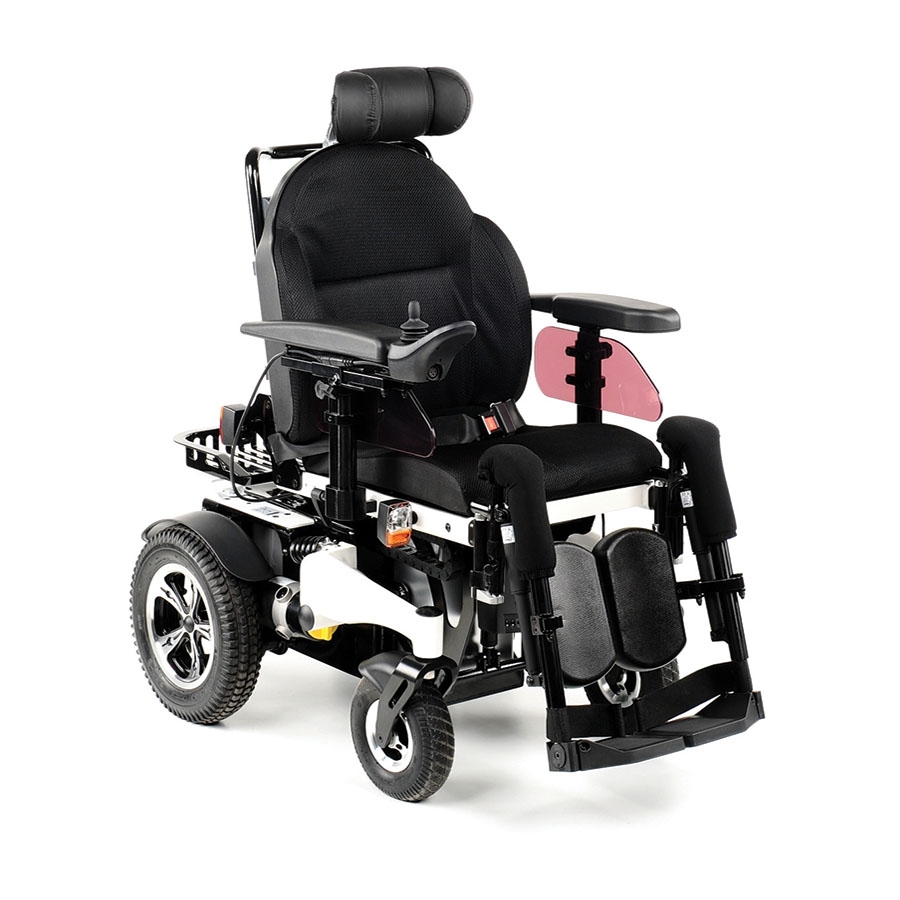

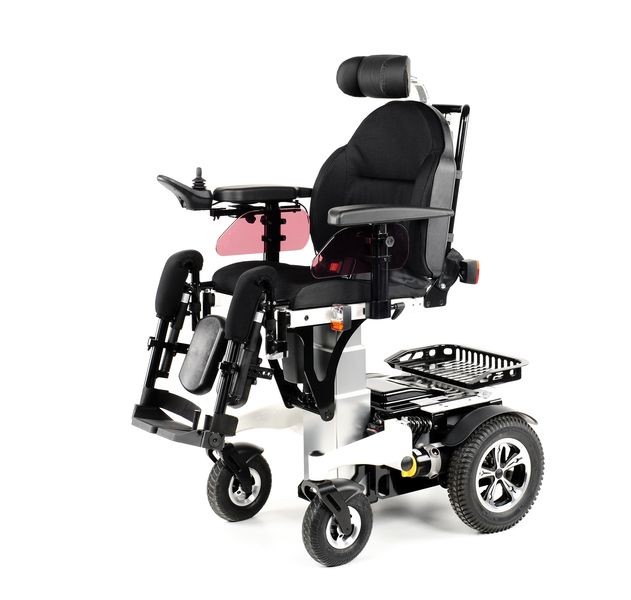

De luxe lift Power wheelchair [PCBL1620/1820 ]
PRODUCT CHARACTERISTICS:
- aluminium frame
- wheelchair designed for home- and terrain-use with double shock absorbing system
- speed 10 km/h
- seat depth and width adjustment
- electrical adjustment of the seat and backrest angle
- removable and tiltable footrest with electrically adjustable tilt angle

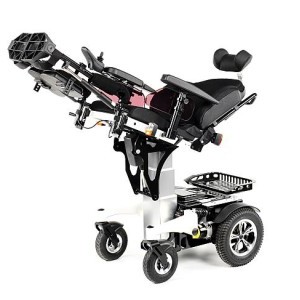

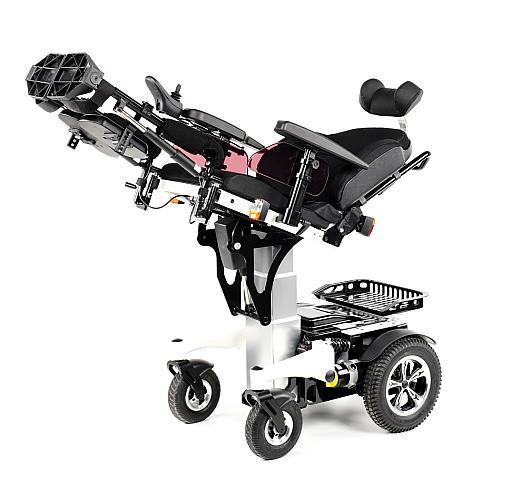

- electrically adjustable seat height up to 30 cm (elevator)
- seat cushion
- lights
- foldable anti-tipping wheels
- height adjustable armrest
- headrest with adjustable position
- lap safety belt
INTENDED USE:
A powered wheelchair electric is a quality of life device designed to ensure mobility.
CONTRAINDICTIONS:
Contraindications for sitting position.
| Maximum speed (km/h) | 10 |
| Seat width measured on the upholstery (cm) | 40/45 |
| Seat width measured between the sides (cm) | 47 - 53 |
| Seat depth measured on the upholstery (cm) | 47 |
| Backrest height (cm) | 57 |
| Total wheelchair height (cm) | 110 - 140 |
| Lower leg support length: min/max (cm) | 43,5 - 59 |
| Armrest height measured from the seat upholstery (cm) | 24 |
| Seat cushion height (cm) | 6 |
| Front height of the seat (with the cushion) (cm) | 49 |
| Total wheelchair width (cm) | 64 |
| Total length of the wheelchair with footrests (cm) | 119/124 |
| Wheelchair weight with/without the batteries (kg) | 119/90 |
| Wheelchair height during transport (cm) | 80 |
| Front wheels | 9" |
| Rear wheels | 14" |
| Max obstacle to overcome (cm) | 9 |
| Turning radius (cm) | 140 |
| Range* (km) | 25 |
| Maximum capacity (kg) | do 160 |
| Batteries (Ah) | 2 x 75 |
| Motor (W) | 2 x 450 |
| Backrest angle adjustment range | 45° |
| Seat angle adjustment range | 25º |
* Speed, max distance of the vehicle depends on the user weight, tyres pressure, battery load, battery capacity and the terrain on which the vehicle is used.
The estimated range concerns laboratory conditions.
